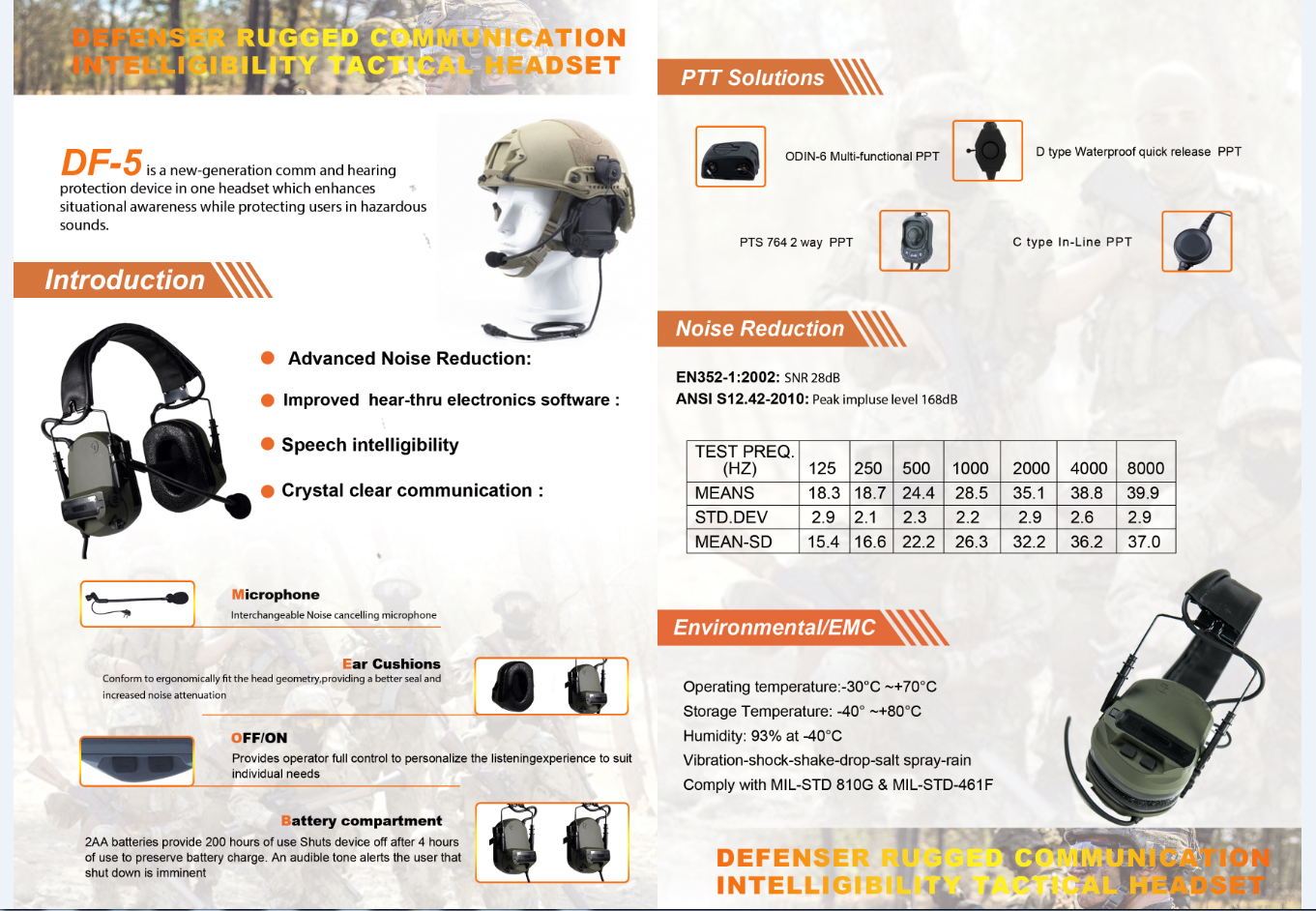

Model No: DF-5
Headband SNR 28dB Advanced Combat Tactical Headset
Headband
Situational awareness
Talk-through function
Situational awareness
Talk-through function
Quantity :
Headband Advanced Combat Tactical Headset Situational awareness headset
1. Powered by 2xAA battery providing approximately 120 hours of battery life.
2. Reduces noise to a safe level(Utmost at 30dB)but still allows the user to hear environmental sounds.
3. Noise-canceling boom microphone can be mounted on either the left or the right side
4. Foldable for easy storage, flexible headband easy to adjust
5. Adjust to a pleasant listening level by pressing “+” “-”button
Key attributes
| Headphone | Impedance | 50Ω±15% |
| Resonance frequency | 550HZ±20% | |
| Sensitivity | 86dB±3dB @ AT 1000Hz / 224mV / 0.01m | |
| Rated input power | 0.1W @ AT 2.23V | |
| Max input power | 0.2W @ AT 3.16V | |
| Bandwidth | 150~15KHz @ OUTPUT S.P.L-10dB | |
| Passive Noise Reduction | -27dB ±1dB | |
| Working temperature | -30℃ ~ +60℃ | |
| Storage temperature | -40℃ ~ +70℃ | |
| Speaker | Power | 50mW |
| Impedance | 100Ω±15% @ AT 900Hz | |
| Sensitivity | 120dB±3dB @ AT 1000Hz / 316mV / 0.01m | |
| f0 | 500Hz±15% | |
| Frequency | 150Hz~15KHz @ OUTPUT S.P.L-10dB | |
| Integrated speaker impedance | 32Ω±15% @ AT 900Hz | |
| Integrated speaker power | 10mW | |
| Integrated speaker sensitivity | 120dB±3dB @ AT 1000Hz /179mV / 0.01m | |
| f0 | 600Hz±15% | |
| Integrated speaker frequency | 100Hz~15KHz @ OUTPUT S.P.L-10dB |
Customization & OEM Services
At Power Time, we provide comprehensive customization for tactical headsets to meet diverse mission requirements. Options include:
- Custom connectors and wiring configurations for major radio brands
- Reinforced cables and housing for enhanced durability
- Branding with your logo and unique labeling
- Optional IP ratings up to IP68
- Adjustable boom microphone and acoustic tuning
- Choice of cable lengths and colors
Minimum Order Quantity: 50 units per model
Lead Time: 4–6 weeks depending on project scope
Contact us for tailored solutions and OEM partnership.
Lead Time: 4–6 weeks depending on project scope
Contact us for tailored solutions and OEM partnership.
Why Choose Us for Tactical Headsets
With over 20 years of experience supplying mission-critical tactical headsets, we combine advanced audio technology with rugged designs that meet the demands of law enforcement, military training, and industrial teams. Our products feature certified IP ratings, durable materials, and proven compatibility with major radio brands, backed by responsive OEM customization and reliable global delivery.
