Model No: PTE-570
Military IP68 bone conduction headset for harsh environments
bone conduction speaker and microphone
IP68 waterproof
explosion-proof
IP68 waterproof
explosion-proof
Quantity :

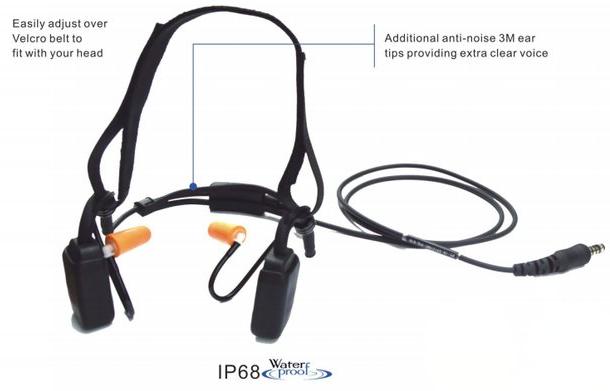

Power Time PTE-570 waterproof bone conduction headset is equipped with both bone conduction speaker and microphone, providing an exceptional audio experience. With this technology, customers no longer need to rely on their eardrums to receive sound signals, making it ideal for use in noisy environments. It allows users to hear audio through their cheekbones, leaving their ears open to the surrounding environment. This feature makes it perfect for individuals wearing helmets, as it does not obstruct the ears. The PTE-570 IP68 bone conduction headset is also designed to be incredibly lightweight and adjustable in size, ensuring a comfortable fit for all users.
Features:
1. Bone conduction speaker and microphone, directly transfers sound vibrations to the inner ear through the cheekbones, minimizing background
noise effectively
2. Do not rely on eardrums, let your ears breathe freely, protect your eardrums, and be alert to the surroundings
3. Adjust the firmness freely according to the head size
4. Optional anti-noise earplugs help to get a clearer voice in high-noisy environments
5. Super waterproof resistant, can work in a variety of harsh environments
6. Application: SWAT, riot police, sniper, army, chemical defense corps, etc
Specification:
| Speaker | Type | Vibration speaker |
| Impedance | 8Ω±15% @1KHZ | |
| ensitivity | 88±3%/1W | |
| Resonance frequency | 600HZ±20% | |
| Frequency response | 300Hz~19KHz | |
| Rated input power | 1W | |
| Maximum input power | 2W | |
| Mic | Type | Capacitance MIC |
| Sensitivity Range | -41 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16 | |
| Impedance Max | 2.2KΩ 1kHz (RL=2.2KΩ) | |
| Frequency | 300-5KHz | |
| Current Consumption Max | 0.5uA RL=2.2KΩ Vs=3.0V(DC) | |
| Operation Voltage Range | 1.0V-10V (DC) | |
| Max Sound Pressure Level | 115dB S.P.L THD<10% at 1K Hz |
Customization & OEM Services
We specialize in OEM development of bone conduction headsets for tactical, industrial, and security applications. Our customization options include:
- Pinout and connector adaptation for your radios
- Tuning bone conduction transducers for clarity
- Branding and private label packaging
- Custom cable length, materials, and reinforcement
- Enhanced waterproofing up to IP68
MOQ: 50 units per model
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Why Choose Us for Bone Conduction Headsets
We specialize in high-performance bone conduction headsets that deliver clear audio without blocking situational awareness. Our engineering team develops solutions trusted by security professionals, first responders, and tactical units worldwide. Every headset undergoes rigorous testing to meet IP68 standards and ensure safe, reliable performance in any environment.
