Model No: PTE-800

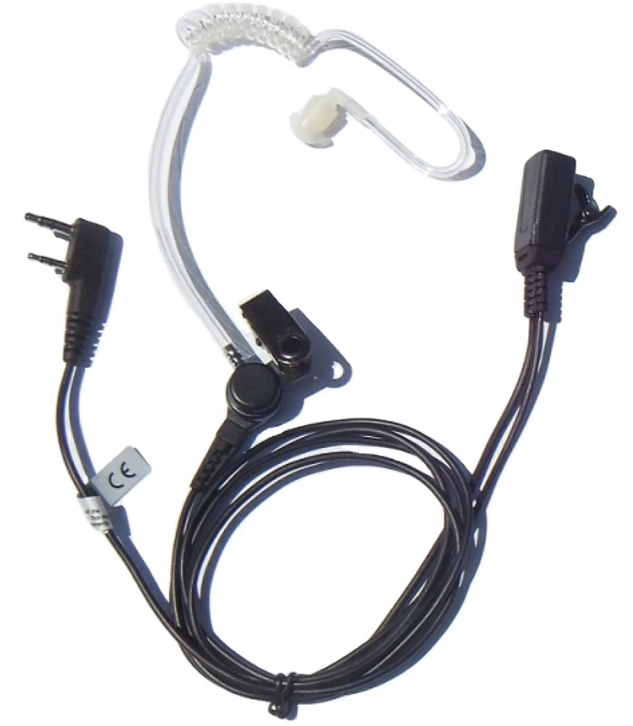

Power Time Wired Acoustic Tube Earpiece for Walkie Talkie

Acoustic tube earpiece for Motorola/ Kenwood/ Icom/ Hytera/ Vertex... two-way radio

Quantity :

Contact Now

Professional acoustic tube 1-wire surveillance kits

The high quality acoustic tube earphone surveillance kits provide superior quality audio sound. Lightweight components and flexible high-grade cable will deliver durability for the most demanding situations.

The earphone with PTT for walkie-talkie, easy to communicate.

PTE-800 acoustic tube earphone Specifications:

Speaker

Type	Transducer Moving coil dynamic speaker
Impedance	100Ω±15% @1KHZ
Sensitivity	105dB±3dB@1KHZ
Resonance freq	4KHZ±20%
Frequency respond	100Hz~4.5KHz
Rated input power	1mW
Maximum input power	10mW

Microphone

Sensitivity Range	-44 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max	2.2KΩ 1kHz (RL=2.2KΩ)
Frequency	20-20KHz
Current Consumption Max	0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range	1.0V-10V (DC)
Max Sound pressure Level	115dB S.P.L THD<2% at 1K

Customization & OEM Services

Our acoustic tube earpieces can be fully customized to meet your operational requirements. We provide:

Connector and pinout customization
Choice of tube materials and eartips
Branding and labeling options
Custom cable length and colors
OEM packaging and bulk shipment options

MOQ: 50 units per model
Lead Time: 3–5 weeks
Contact us for tailored solutions.

Why Choose Us for Acoustic Tube Earpieces

Our acoustic tube earpieces combine discreet design with robust performance for professional security and surveillance applications. We maintain strict quality control and use medical-grade materials for all acoustic tubes to ensure safety and comfort during long shifts. OEM options and private labeling are available for bulk orders.
