Model No: PTE-885S

Power Time 3-wire Acoustic Tube Earpiece with Finger PTT for Walkie-talkie

Walkie-talkie professional surveillance kits 3-wire acoustic tube earphone compatible radio: Motorola/ Kenwood/ Hytera/ Icom/ Vertex/ Sepura...

Quantity :

Contact Now

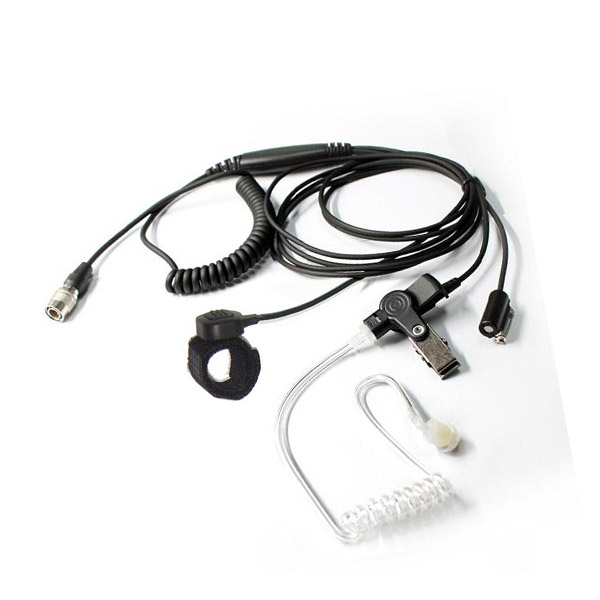

3-wire Acoustic Tube Earphone with lapel Mic and Finger PTT for Walkie-talkie

The 3-wire earpiece with finger PTT and includes an acoustic tube and lapel microphone that can be worn on your sleeve cuff or your lapel. The finger PTT is a good choice for security, patrol, surveillance, hospitality and anywhere private communications are required.

PTE-885S 3-wire Surveillance Kits Specifications:

Speaker Specification

Type	Transducer Moving coil dynamic speaker
Impedance	90Ω±15% @1KHZ
Sensitivity	110±3dB @1KHZ
Resonance freq	(F0) 400HZ±20%
Frequency respond	F0~5KHz
Rated input power	500mW
Maximum input power	800mW

Microphone Specification

Sensitivity Range	-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa
Impedance Max	2.2KΩ 1kHz (RL=2.2KΩ)
Frequency	20-20KHz
Current Consumption Max	0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range	1.0V-10V (DC)
Max Sound pressure Level	115dB S.P.L

Customization & OEM Services

Our acoustic tube earpieces can be fully customized to meet your operational requirements. We provide:

Connector and pinout customization
Choice of tube materials and eartips
Branding and labeling options
Custom cable length and colors
OEM packaging and bulk shipment options

MOQ: 50 units per model
Lead Time: 3–5 weeks
Contact us for tailored solutions.

Why Choose Us for Acoustic Tube Earpieces

Our acoustic tube earpieces combine discreet design with robust performance for professional security and surveillance applications.

We maintain strict quality control and use medical-grade materials for all acoustic tubes to ensure safety and comfort during long shifts.

OEM options and private labeling are available for bulk orders.

FAQ:

Q: How does the acoustic tube earpiece work?

A: Your radio drives the Transducer (a small speaker) which moves a small amount of air in the tube. The tube is tightly sealed to your ear and in this way you hear your radio while blocking ambient noise to that ear.

Q: How do I fix my earpiece dust?

A: Use a soft cleaning cloth, soft brush, or some compressed air to wipe or blow away any debris freed by your brushing.

Q: Where do you clip a radio earpiece?

A: It clips to the uniform on the shoulder and falls just above the collar bone. The cable runs from your radio behind your back. This is most common because the speaker mic rests close to your mouth and ear, so you are heard clearly over the radio
