Model No: PTE-796S

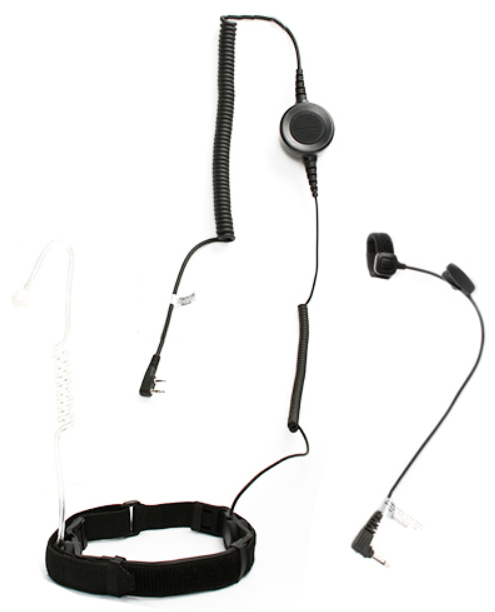

Bone conduction headset with throat mic and acoustic tube
big round PTT + finger style PTT
Quantity :
Power Time state-of-the-art PTE-796S dual PTT throat microphone headset, setting the standard for clear and efficient communication in demanding environments. Engineered with a size-adjustable soft belt and equipped with an acoustic tube earbud, this bone conduction headset with throat mic ensures a comfortable and secure fit for extended wear. The innovative dual PTT feature allows for simultaneous communication on two separate channels, enhancing coordination and responsiveness in dynamic operational scenarios. Furthermore, the additional 3.5mm jack for a listen-only earpiece provides versatility and adaptability to diverse communication needs.
Dual PTT throat microphone headset features:
1. Soft belt assembled with advanced bone conduction microphone to supply super clear transmission
2. Noise-canceling speaker with acoustic tube gives excellent sound
3. Additional 3.5mm jack for all kinds of listen-only earplugs
4. Hypo-allergenic acoustic tube for long-term mission wearing
5. Both big round PTT and small finger PTT are equipped for convenient use
6. Compatible with various kinds of protective masks and tactical helmets
7. Remote control finger PTT for choice
Specification:
| Speaker | Type | Transducer Moving coil dynamic speaker |
| Impedance | 32Ω±15% @1KHZ | |
| Sensitivity | 115±3%/1mW | |
| Resonance frequency | 1KHZ±20% | |
| Frequency response | 100Hz~5KHz | |
| Rated input power | 1mW | |
| Maximum input power | 10mW | |
| Mic | Sensitivity Range | -47 ± 3dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16 |
| Impedance Max | 2.2KΩ 1kHz (RL=2.2KΩ) | |
| Frequency | 300-5KHz | |
| Current Consumption Max | 0.5uA RL=2.2KΩ Vs=3.0V(DC) | |
| Operation Voltage Range | 1.0V-10V (DC) | |
| Max Sound Pressure Level | 115dB S.P.L THD<10% at 1K Hz |
Customization & OEM Services
We specialize in OEM development of bone conduction headsets for tactical, industrial, and security applications. Our customization options include:
- Pinout and connector adaptation for your radios
- Tuning bone conduction transducers for clarity
- Branding and private label packaging
- Custom cable length, materials, and reinforcement
MOQ: 50 units per model
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Why Choose Us for Bone Conduction Headsets
We specialize in high-performance bone conduction headsets that deliver clear audio without blocking situational awareness. Our engineering team develops solutions trusted by security professionals, first responders, and tactical units worldwide. Every headset undergoes rigorous testing to ensure safe, reliable performance in any environment.
