Model No: PTE-570EX

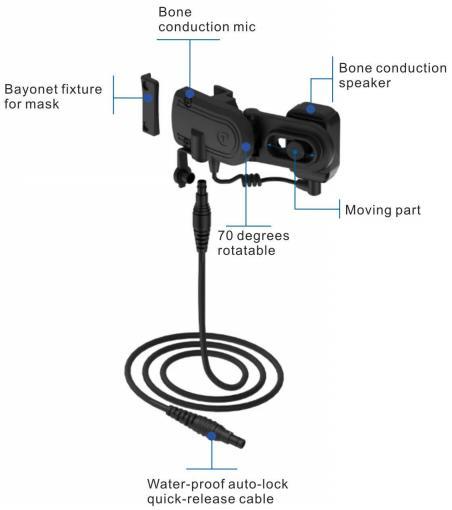

PTE-570EX ATEX bone conduction headset for mask
IP68 & ATEX Ex ia IIC T6 Ga
be compatible with a wide range of masks
be compatible with a wide range of masks
Quantity :
Power Time newly released PTE-570EX ATEX bone conduction headset, designed to meet the most demanding communication needs in challenging environments. This bone conduction headset for firefighter features both a bone conduction microphone and speaker, enabling clear sound transmission via the cheekbone, even in the most extreme noise conditions. Engineered for versatility, it can be effortlessly installed on masks, making it an ideal communication solution for rescue tasks and critical operations. The fire-proof bone conduction headset has been rigorously tested and certified to meet IP68 and ATEX standards, ensuring exceptional durability and safety in hazardous environments.
Features:
1. Unique modularity: easy to install
2. Compatible with a wide range of protective masks without compromising the use of other gear
3. Noise-cancelling cheekbone conduction microphones and speakers, designed for exceptional performance
4. IP68 waterproof and ATEX Ex ia IIC T6 Ga
2. Compatible with a wide range of protective masks without compromising the use of other gear
3. Noise-cancelling cheekbone conduction microphones and speakers, designed for exceptional performance
4. IP68 waterproof and ATEX Ex ia IIC T6 Ga
Specification:
| Speaker | Type | Dynamic speaker |
| Impedance | 2.5 Ohm ±20% AT 1KHz (paralleling) | |
| Sensitivity | 112±5dB AT 500mV 1KHz | |
| Frequency | 200~4KHz | |
| Rated input power | 1.5W | |
| Max input power | 3W | |
| Mic | Type | Bone conduction mic |
| Sensitivity | -42±5dB RL=2.2KΩ Vs=2.0V(DC) f=1KHz, 0dB=1V/g | |
| Impedance | 2.2KΩ AT 1kHz | |
| Frequency | 200~4KHz | |
| Operation voltage | 1.5~10VDC | |
| Current Consumption Max | 0.5mA (at RL=2.2KΩ Vs=2.0V(DC)) |
Customization & OEM Services
We specialize in OEM development of bone conduction headsets for tactical, industrial, and security applications. Our customization options include:
- Pinout and connector adaptation for your radios
- Tuning bone conduction transducers for clarity
- Branding and private label packaging
- Custom cable length, materials, and reinforcement
- Enhanced waterproofing up to IP68
MOQ: 50 units per model
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Why Choose Us for Bone Conduction Headsets
We specialize in high-performance bone conduction headsets that deliver clear audio without blocking situational awareness. Our engineering team develops solutions trusted by security professionals, first responders, and tactical units worldwide. Every headset undergoes rigorous testing to meet IP68 standards and ensure safe, reliable performance in any environment.
