Model No: PTE-1315

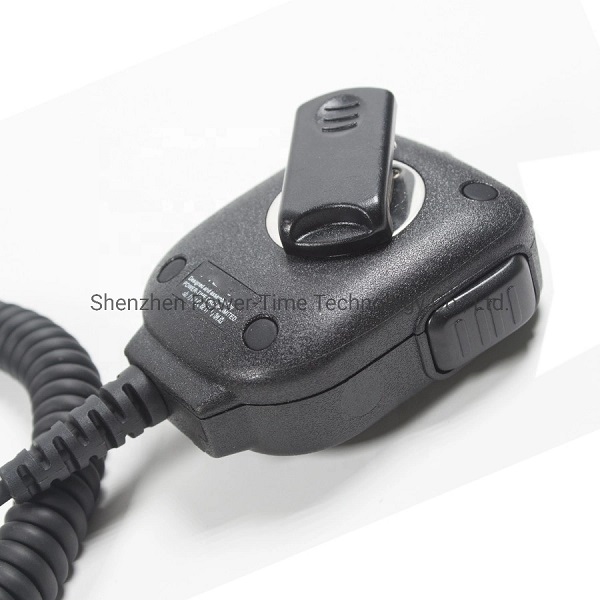

IP67 Water-proof Heavy-duty Remote Speaker Microphone for Two-way Radios
IP67 Waterproof heavy-duty shoulder remote speaker microphone for two-way radios
Quantity :
Heavy-duty IP67 waterproof speaker microphone for two-way radios
The heavy-duty remote speaker microphone offers a rugged, cost-effective solution that is ideal for industrial and security applications. and a simple solution for talking and listening without removing your radios from a case or belt.
PTE-1315 Waterproof Heavy Duty Remote Speaker Microphone Specifications:
1. Speaker Specification
Type | Dynamic |
Impedance | 8Ω±15% @1KH |
Sensitivity | 96±4dB @1KH |
Frequency respond | 300~3.5KH |
Rated input power | 1W |
Maximum input power | 2W |
2. Microphone Specification
| Sensitivity | -30± 4dB RL=2.2K Ω Vs=3.0V(DC) |
| Impedance Max | 2.2KΩ 1kHz (RL=2.2KΩ) |
| Frequency respond | 20-20KHz |
| Current Consumption | 0.5uA RL=2.2KΩ Vs=3.0V(DC) |
| Signal to Noise Ratio | ≥58dB |
| Max Sound Pressure Level | 115dB S.P.L f-1K Hz THD<5% |
Customization & OEM Services
Our remote speaker microphones can be adapted to your operational requirements with:
- Connector and pinout customization
- Microphone tuning and speaker output adjustments
- Custom logo printing and labeling
- Optional waterproofing and ruggedized designs
- Custom cable length and colors
MOQ: 50 units per model
Lead Time: 4–6 weeks
Contact us for detailed specifications.
Why Choose Us for Remote Speaker Microphones
Our remote speaker microphones are engineered for dependable performance in challenging conditions. From waterproof housings to high-sensitivity microphones, we provide rugged, tested designs trusted by security services, emergency responders, and industrial teams. We also offer branding and configuration options to match your fleet requirements.
