Model No: PTE-1302

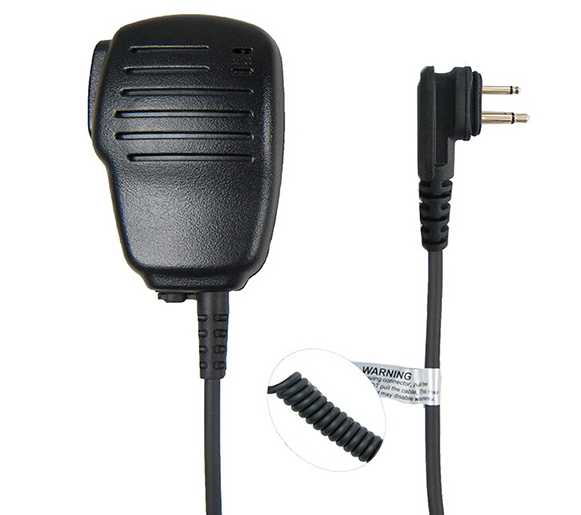

Power Time Mini shoulder speaker microphone
Mini Shoulder walkie-talkie Speaker microphone brings more convenience in critical communication, human-designed size for handheld use.
Quantity :
Mini shoulder speaker microphone for two-way radios
High-performance rugged design speaker microphones offer a rugged, lightweight, cost-effective solution that is ideal for industrial and security applications. Our walkie-talkie mini speaker mic comes in a variety of styles and offers professionals a simple solution for talking and listening without removing your radio from a case or belt.
PTE-1302 Mini shoulder speaker microphone Specifications:
1. Speaker
Type | Moving coil dynamic speaker |
Impedance | 8Ω±15% @1KHZ |
Sensitivity | 92±3dB @1KHZ |
Frequency respond | F0~8.5KHz |
Rated input power | 500mW |
Maximum input power | 1000mW |
2. Microphone
Sensitivity Range | -36 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max | 2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency | 50-1600Hz |
Current Consumption Max | 0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range | 1.0V-10V (DC) |
Max Sound pressure Level | 115dB S.P.L |
Customization & OEM Services
Our remote speaker microphones can be adapted to your operational requirements with:
- Connector and pinout customization
- Microphone tuning and speaker output adjustments
- Custom logo printing and labeling
- Optional waterproofing and ruggedized designs
- Custom cable length and colors
MOQ: 50 units per model
Lead Time: 4–6 weeks
Contact us for detailed specifications.
Why Choose Us for Remote Speaker Microphones
Our remote speaker microphones are engineered for dependable performance in challenging conditions. From waterproof housings to high-sensitivity microphones, we provide rugged, tested designs trusted by security services, emergency responders, and industrial teams. We also offer branding and configuration options to match your fleet requirements.
