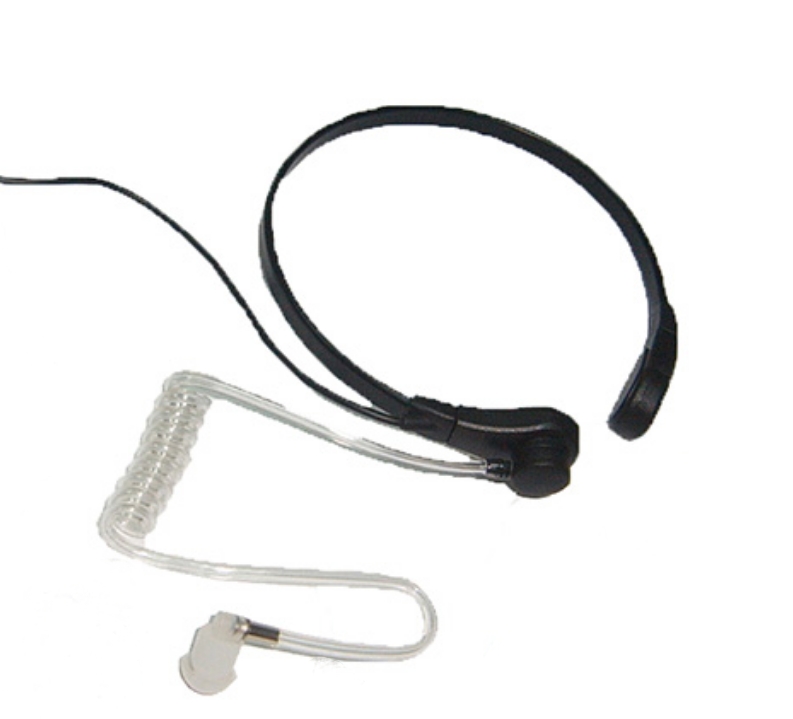

Model No: PTE-780VOX
Small throat bone conduction microphone headset with VOX function PTT
Throat microphone headset with VOX function PTT
Quantity :
Power Time PTE-780VOX throat bone conduction headset, is a groundbreaking communication solution that redefines hands-free operation. The PTE-780VOX throat microphone headset with PTT boasts a significant feature—a built-in PTT (Push-to-Talk) with VOX (Voice Operated Exchange) function. This innovative addition allows users to utilize the headset with their radios entirely hands-free, offering unparalleled convenience and flexibility in various environments.
VOX function throat microphone headset features:
1. With a medicinal grade acoustic tube, discreet and comfortable
2. Excellent intelligent capability, great noise cancellation capability
3. All have Kevlar reinforced cable assemblies and over-molded strain relief
4. Clear ear tip, trigonal, noise-canceling foam optional
5. Unique PTT/VOX switch, when activated on a voice-activated transmission(VOX) capable radio, the user can operate in total hands-free mode without having to use the radio PTT button. To disable the VOX feature, the user simply presses the radio's PTT once and sets the selector back to PTT
6. Comfortably work with tactical helmets, motorcycle helmets, and breathing masks
7. Application: SWAT, police, military groups, and mission-critical
2. Excellent intelligent capability, great noise cancellation capability
3. All have Kevlar reinforced cable assemblies and over-molded strain relief
4. Clear ear tip, trigonal, noise-canceling foam optional
5. Unique PTT/VOX switch, when activated on a voice-activated transmission(VOX) capable radio, the user can operate in total hands-free mode without having to use the radio PTT button. To disable the VOX feature, the user simply presses the radio's PTT once and sets the selector back to PTT
6. Comfortably work with tactical helmets, motorcycle helmets, and breathing masks
7. Application: SWAT, police, military groups, and mission-critical
Specification:
| Speaker | Type | Transducer Moving coil dynamic speaker |
| Impedance | 32Ω±15% @1KHZ | |
| Sensitivity | 115±3%/1mW | |
| Resonance frequency | (F0)4KHZ±20% | |
| Frequency response | 20Hz~4KHz | |
| Rated input power | 300mW | |
| Maximum input power | 500mW | |
| Mic | Sensitivity Range | -40 ± 3dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16 |
| Impedance Max | 2.2KΩ 1kHz (RL=2.2KΩ) | |
| Frequency | 20-20KHz | |
| Current Consumption Max | 0.5uA RL=2.2KΩ Vs=3.0V(DC) | |
| Operation Voltage Range | 1.0V-10V (DC) | |
| Max Sound Pressure Level | 115dB S.P.L THD<2% at 1K |
Customization & OEM Services
We specialize in OEM development of bone conduction headsets for tactical, industrial, and security applications. Our customization options include:
- Pinout and connector adaptation for your radios
- Tuning bone conduction transducers for clarity
- Branding and private label packaging
- Custom cable length, materials, and reinforcement
MOQ: 50 units per model
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Lead Time: 4–6 weeks
Reach out for your project quote and technical consultation.
Why Choose Us for Bone Conduction Headsets
We specialize in high-performance bone conduction headsets that deliver clear audio without blocking situational awareness. Our engineering team develops solutions trusted by security professionals, first responders, and tactical units worldwide. Every headset undergoes rigorous testing to ensure safe, reliable performance in any environment.
